Euro Mixed Value Counter
| » Mixed Euro counting
» Show the pcs of each denomination
» Show the total value
» Denomination sort function
» Batch/Add function
» Auto/Manual function
Specification
| Weight: |
5.8 kg |
| Aplicable Notes: |
Width:50-90
Length:110-180
Thickness:0.075-0.15 mm |
| Dimension: |
300x253x206 mm |
| Counting Speed: |
1000pcs/min |
| Stacker Capacity: |
200 Banknotes |
| Hopper Capacity: |
200 Banknotes |
| Power Supply:; |
AC220V±10% 50Hz AC110V±10%
60Hz |
| Power Consumption: |
≤80W |
|
|
|
Euro counterfeit detector
|
| Features |
|
|
Specification |
| |
|
| » Semi-automatic, accurate euro
detector with value counting. |
|
|
» Detection: magnetism, infrared, image, paper quality, thickness, size |
| » Easy to update software by
USB connection. |
|
|
» Dimension: 155*137*82(mm) |
| » Shows the total sum and number of
accepted banknotes counted |
|
|
» Power Supply: AC100V-240V 50/60Hz or DC 12V/1.0A |
| » Insert the banknotes at any directions |
|
|
» Operating temperature: 0~40 ℃ |
| » Portable operation with built-in
rechargeable battery (optional). |
|
|
» Storage temperature: -20~65 ℃ |
| |
|
|
» Battery: rechargeable lithium battery
11.1V/3500mAH |
| |
|
|
» Power Consumption: <10W |
| |
|
|
» Speed: <0.5s/sheet |
|
|
|

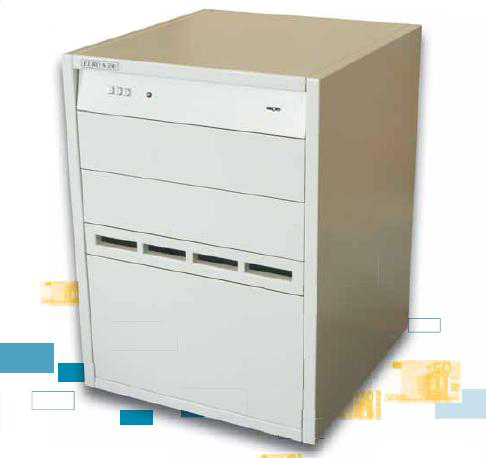

Multi-Function Cash Unit with Time Delay Lock
|
| » Simplified version of EuroMulti unit |
| » Ideal for banks, post offices, gas stations |
| » Suitable for banknotes, coins, checks, cards, documents |
| » Button controlled operating |
| » Time delay lock for each drawer |
| » Tested construction and grade A lock |
| » Extensible deposit panel available |
| » Silent alarm with blocking system |
| » ISO 9001 |
EuroMulti Simple Security Units are designed to provide an increased cash security during working hours.
They provide tested physical and psychological protection. Affordable price enables using them for each cashier.
It provides different philosophy of security than expensive and heavy safes.
EuroMulti Simple units consist of two main parts steel box and drawer modules. The front panels of drawers are reinforced
with 6 mm thick steel sheets. There are 2 standard models of EuroMulti Simple 3 drawer versions with fixed
or extensible deposit slot.
What do EuroMulti Simple units offer to you?
Increasing security for your cashiers and valuables
The most effective protection during working hours
The best solutions for open banks
EuroMulti Simple units are mainly used as:
Universal for cash deposit/dispense
Cash exchange
Features
Tested construction and grade A lock
Fixed or extensible deposit slot
Time delay for each drawer from 0 to 100 min
Automatic or confirmed opening of all drawers
Silent alarm activation and blocking system
Alarm output NO/NC
ISO 9001 quality management
Operating
Control of EuroMulti Simple is very easy. At the control panel there are steel buttons that enable opening of the drawers.
Each button opens only one drawer. Opening of certain drawer is activated by pressing of relevant button. The unit is
activated by main security key.
Opening modes
In standard mode, drawers are opened automatically when time delay elapses. In a special mode security unit beeps
when time delay elapses but drawer remains closed. Drawer will be opened by pressing relevant button again.
Connection to alarm:
Connection can be done by using of NC alarm output at the back side of unit. Alarm is activated by pressing the alarm
button which is externally connected to the unit. All drawers will be blocked after alarm activation. There is a possibility
to block all drawers except the first one.
Technical data
| Time delay settings |
0-100 min for each drawer |
| External blocking |
yes, 10/30 min |
| |
|
| Number of drawers |
2, or 3 |
| Standard color |
gray RAL 7035 |
| |
|
| Power supply |
110 - 230/15V, 2A, CE |
| |
|
| Dimensions (H × W × D) |
690* × 500 × 530 mm, *hight adj. + (0 - 30 mm) |
| Weight |
80 kg |
| Internal volume |
96 l |
|
|
|
| |
